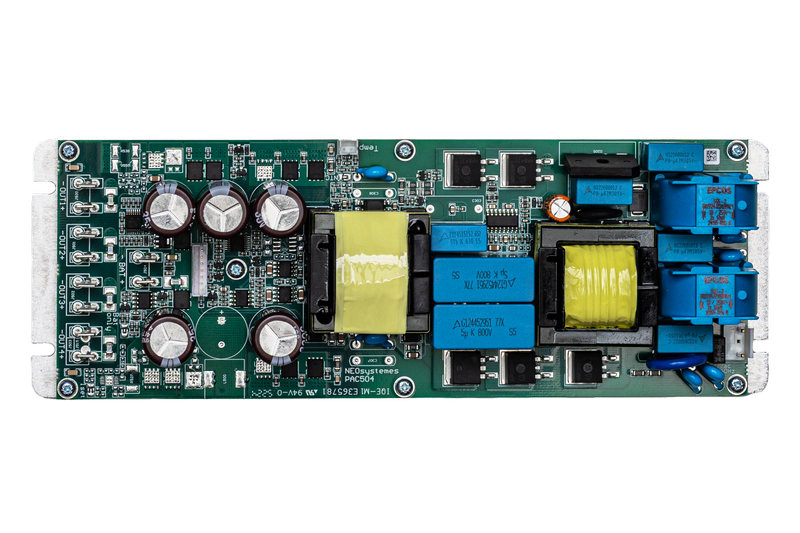

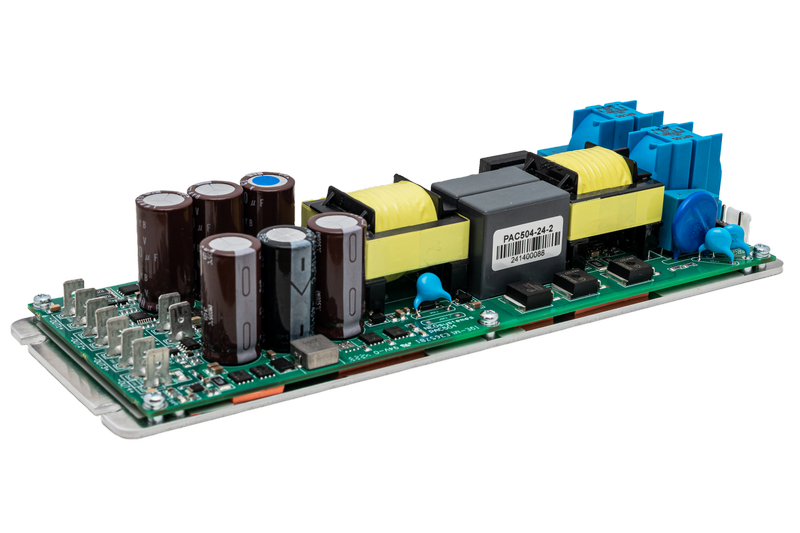

PAC504-24-0

500W/27.2Vdc AC and DC powered power supply

The PAC504-24 is a power supply module, allowing to power firealarm systems and audio amplifiers. It provides four 27.2Vdc DC outputs for a total of 500Wrms output power. Battery charging is possible using the charger included in the PAC504-24-2 and the PAC504-24-4 versions.

AC input	100 to 240 Vac
DC output	27.2 Vdc
Total continuous output power	500 W
Burst maximum power (ΔVdc = 8 V) 9 dB crest factor, 20 ms ON, Pmoy = 1/4 Pburst	900 W
Idle consumption (230 Vac)	< 3.5 W
Total efficiency (500 W / 230 Vac)	> 91%
Fully protected	OTP and OCP
Size(LxWxH)	215x80x38 mm
Weight	680 g
