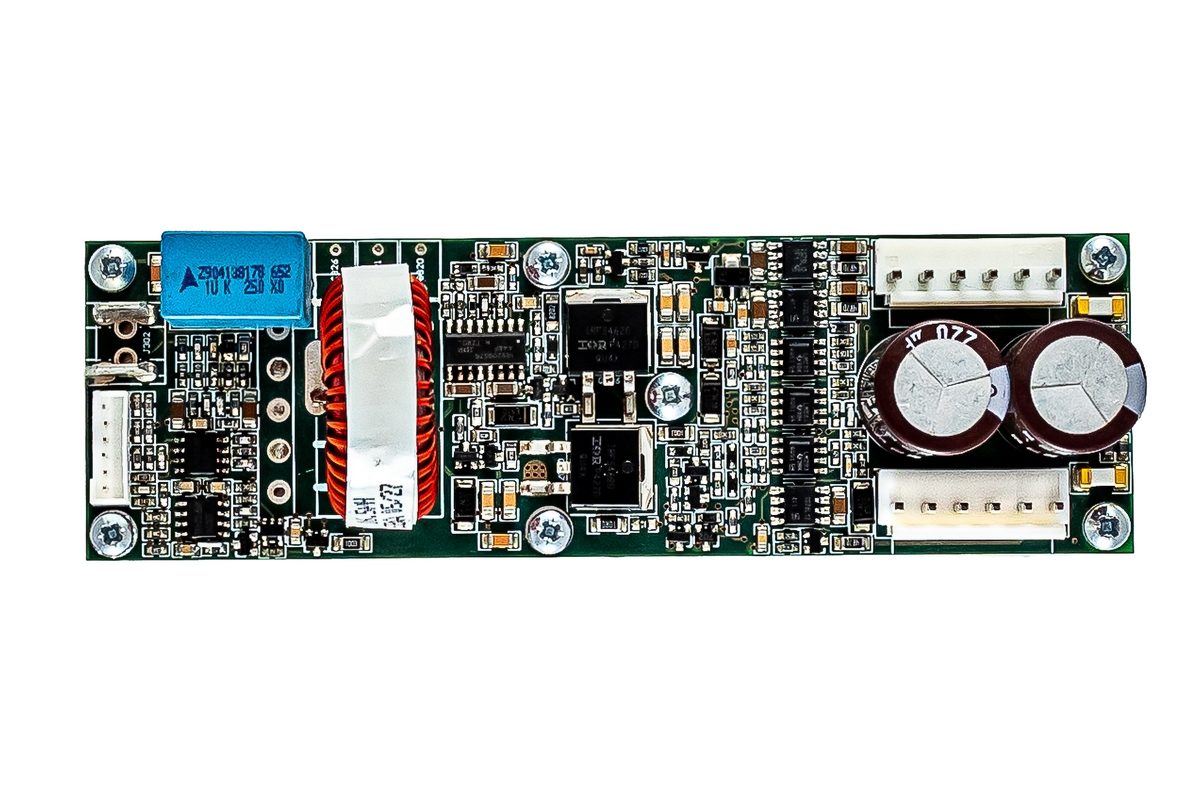

AMPone800

800 W/4 ohm amplifier

The AMPone® digital power amplifier module provides a unique stereo sound, thanks to an innovative switching tech­nology. The wide frequency modulations with a load invariant loop control enable an exceptional dynamic response, along with very high efficiency. All protections, over-current, over-temperature, over-voltage, under-voltage and dc output detection are included, ensuring high reliability.


Power RMS under 4Ω 800W
Power RMS under 8Ω 350W
Power RMS continuous @70°C 150W
Frequency response (-3db) 2 Hz-60 kHz
Voltage Gain 26 dB
THD+N (1kHz, 10W, 8 Ω) < 0,002%
Signal to noise ratio 113 dB
Damping factor (1kHz, 8 Ω) > 1000
Efficiency > 93%
Idle Consumption < 4,2W
Fully protected OTP, UVP, OVP, OCP & DCP
Operational Temp -10 to 55°C
Size(LxWxH) 130 x 40 x 39 mm
Weight 120g

Applications

Active Speakers
Sound reinforcement
Rack mounted amplifier system
Professional audio system
Public address system

Auxilary functions

Enable command
Protect output
Clip detect output

Complete datasheet on demand
DESIGNED AND MANUFACTURED IN FRANCE
